HNR12
H08U007551
Product information "HNR12"

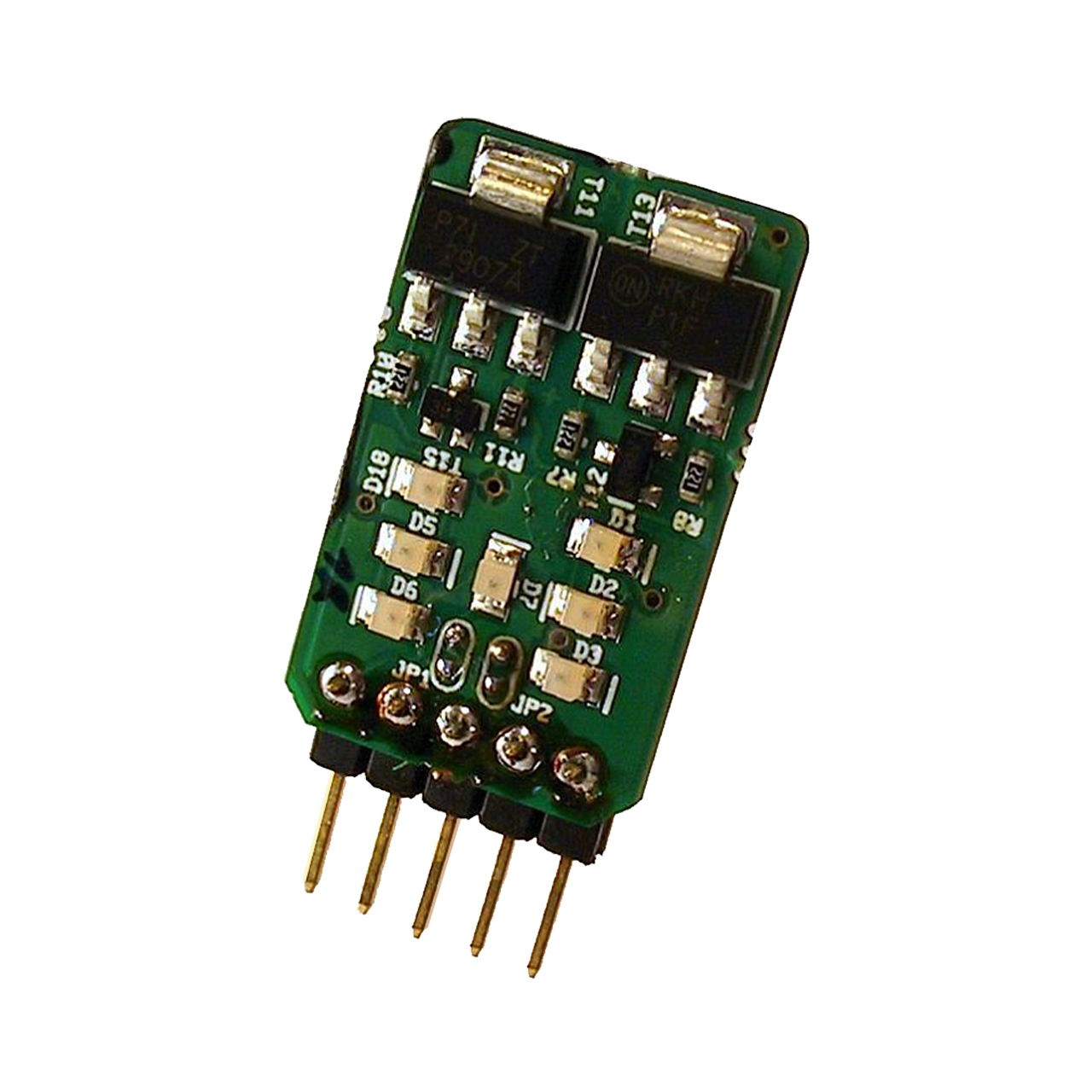

The HxR series regulators are high performance voltage regulating components targeted at performance-critical audio applications. Key performance parameters exceed that of industry-standard integrated circuits by several orders of magnitude. Kelvin sense connections provide point-of-load (local) regulation without requiring physical proximity. The HNR12 is a 12V regulator.
APPLICATIONS
- • Preamplifiers and buffers
- • RIAA input stages
- • Playback head amplifiers
- • Performance upgrade for existing products
FEATURES
- • Ultra-low noice
- • Wide bandwidth
- • Excellent ripple rejection
- • Low, load-independend output impedance
- • Kelvin sense connections
- • Size and pin compatible with TO-220 style regulators
| Output impedance: | 50mΩ |
|---|---|
| Max. input voltage: | 60V |
| Max. output current: | 100mA |
| Output Noise Voltage: | 290nV |
| Output voltage: | -12V (negative) |
| Power dissipation: | 1W |
| Ripple rejection: | 110dB |
