NC2K OEM

H01U001628

Please login to see our prices

Downloads

CAD drawings

NC2k_02xx.zip

datasheets

NC2k_datasheet_R6.pdf

Product information "NC2K OEM"

Step into a realm of extraordinary audio power and precision with the NC2k OEM amplifier module, a groundbreaking addition to our NCORE® amplifier lineup. As a high-quality audio power amplifier operating in Class-D, the NC2k OEM not only ensures the continuation of audiophile music reproduction in an energy-conscious world but also sets a new benchmark for touring amplifiers and stadium size subwoofers with extreme power and deep bass reproduction.

At its core, the NC2k OEM inherits the legacy of its predecessors in the NCORE® Family, and expands upon it with a class-leading 2500W true power output. This module is not merely an amplifier; it’s a testament to our commitment to pushing the boundaries of amplifier design to deliver raw power, precision engineering, and adaptability. Operating on a non-hysteresis 5th order self-oscillating control loop, the NC2k OEM takes feedback exclusively at the speaker output. This innovative approach ensures measured and sonic performance that raises the bar for audio amplifiers. Immerse yourself in a sonic experience where every note is reproduced with extreme precision.

The NC2k OEM amplifier, distinguished by its impressive 160V voltage peak, is a testament to our technology in the realm of professional audio. This substantial voltage peak is paramount for the optimal performance of professional loudspeakers paired with the NC2k OEM amplifier. In the dynamic world of pro audio, where clarity and power are non-negotiable, the 160V voltage peak ensures that the amplifier can deliver robust and undistorted signals to the connected loudspeakers. Such a high voltage peak equips the NC2k OEM to handle demanding transients, sudden peaks in audio signals, and challenging dynamic ranges commonly encountered in live performances or large-scale sound reinforcement setups.

Designed for a multitude of applications, the NC2k OEM excels as a stand-alone power amplifier for both professional and consumer use, active loudspeakers in recording and mastering studios, and as the cornerstone of very high-end home theatre systems all the way to professional PA systems, touring amplifiers and stadium size subwoofers. Its adaptability makes it a singular solution that effortlessly meets the demands of power-hungry audio applications.

Built with touring amplifiers in mind, the NC2k OEM is a robust and reliable companion for audio professionals on the move. Its formidable power output and durable design make it the go-to choice for touring setups where reliability and performance are non-negotiable. Equipped with advanced detection and protection features, the NC2k OEM ensures uninterrupted performance in the face of challenging and dynamic audio environments. Overcurrent and overvoltage safeguards guarantee the longevity of the module, providing peace of mind to audio professionals in the field.

With extremely low distortion across the frequency and power range, extremely low output impedance, extremely low noise, and an extremely neutral and transparent sound, the NC2k OEM is a sonic juggernaut, redefining what is possible in high-quality Class-D amplification.

Highlights

• Extremely low distortion across the frequency and power range
• Exceptionally low output impedance for precise speaker control
• Minimal noise for a pure audio experience
• Remarkably neutral and transparent sound reproduction

Features

• Differential audio input for enhanced signal integrity
• 48A current capability
• 2-Ohm powerhouse for current hungry applications
• Extensive, Microprocessor-controlled error protection

Protections

• Overcurrent protection
• Under- and overvoltage protection
• Clip indicator
• Excessive DC protection

Possible applications

• Audiophile Home Theatre systems
• Audiophile Power Amplifiers; for home and professional use
• Audiophile Immersive Audio systems
• Audiophile Multichannel Power Amplifiers

Bridgable:	No
Output Power (2Ω):	2000W
Output Power (4Ω):	2500W
Output Power (8Ω):	1600W
Channels:	1
Distortion:	0.0006% 20hZ < f < 20kHz. Pout = 1W
Output Noise:	7 µV
Power bandwidth:	20Hz - 35kHz
Freuquency Response:	DC 50kHz +0/-3dB. All loads
Power Supply Voltage:	35 (Min), 84 (Typ), 98 (Max) HV+/-
Idle Power:	34W
Output impedance:	2mΩ (Max) - f < 20kHz, 3mΩ (Max) - f < 1kHz
HxR Ready:	No
OpAmp:	No
Compatible SMPS:	SMPS3kA400, SMPS3kA700
Technology:	NCORE®
Family:	NCORE® Family

Recommended additional parts

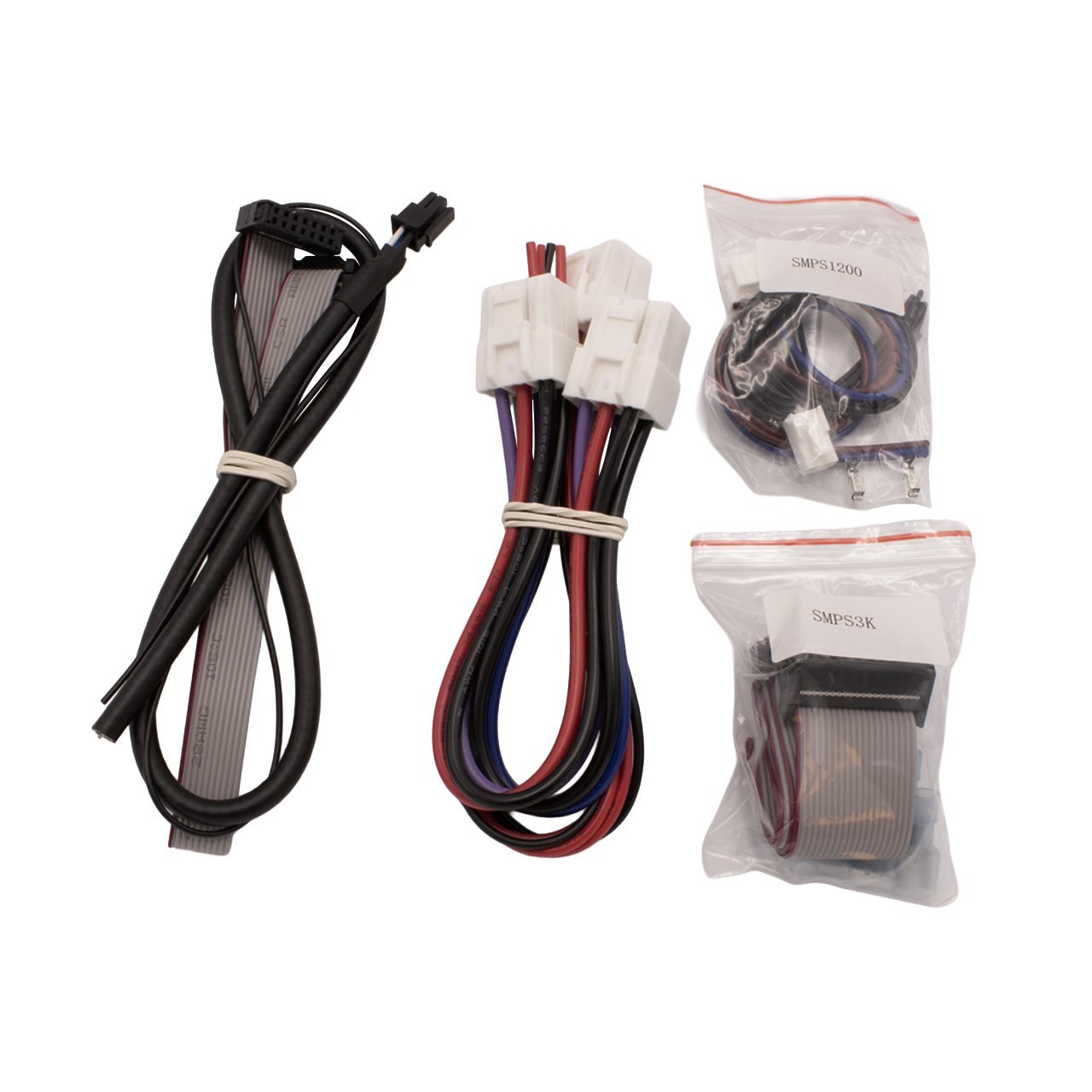

Cable set NC1200 / NC2k
