DSP3-213

H99U002727

Please login to see our prices

Downloads

CAD drawings

CAD_Package_DSP3-213 03xx.zip

datasheets

Datasheet-R06 DSP3-213-04xx.pdf

documentation

firmware

software

Product information "DSP3-213"

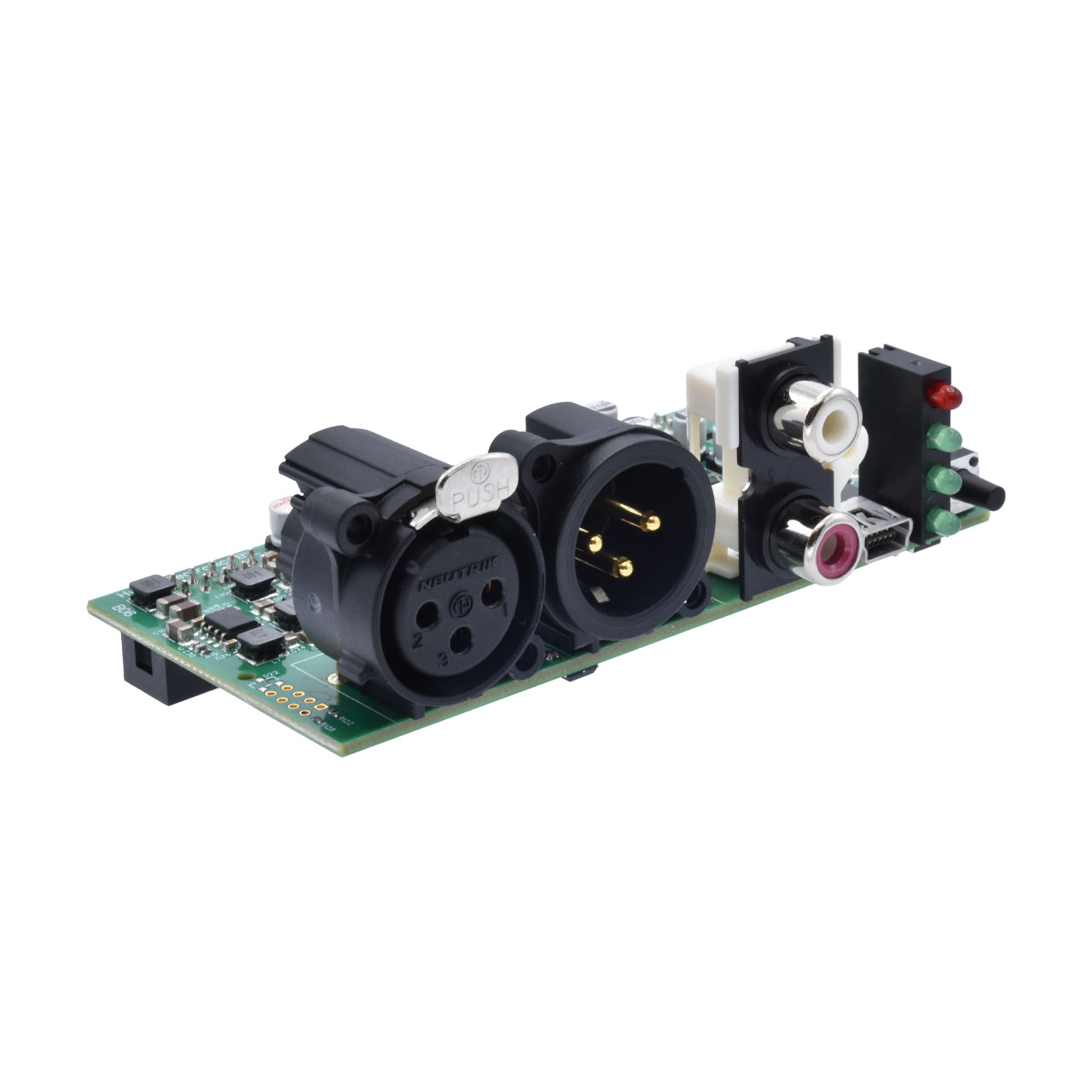

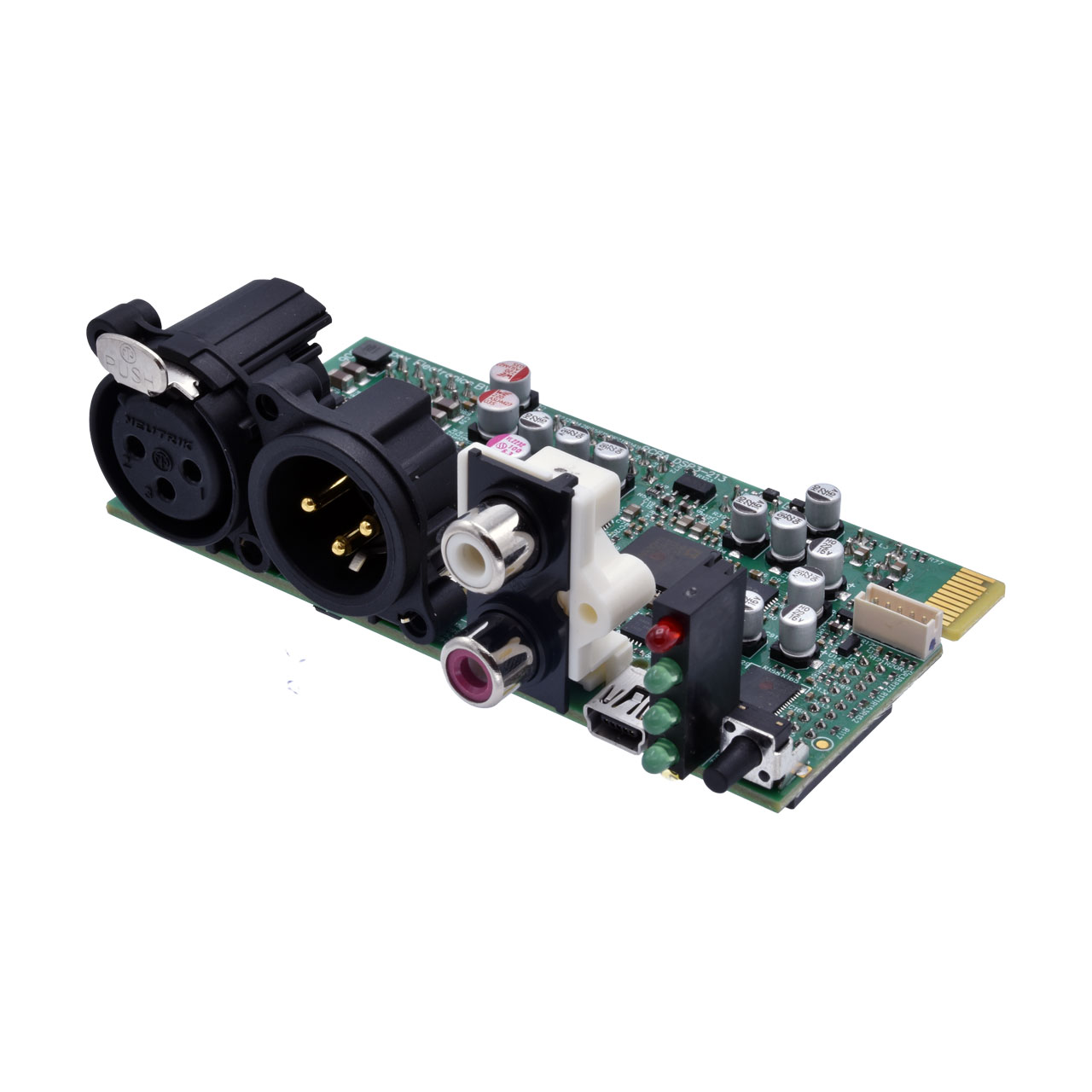

Step into the realm of high-grade audio with our series 3, mono/3-way DSP solution, a gateway to a high-grade audio experience like never before. Engineered with precision and passion, this board, built on the Analog Devices ADAU1452, beckons audiophiles to enter the world of high-grade audio perfection.

Crafted to perfection, the DSP3-213 is optimized for use with our mains-powered NCORE® Family of amplifier power bricks. The marriage of cutting-edge technology and meticulous design ensures unparalleled audio quality, setting new standards in the pursuit of sonic excellence.

Elevate your audio journey by expanding the DSP3-213’s capabilities with optional boards such as the DIGin3-322 for digital inputs or the SUBin3-110 tailor-made for subwoofers. This modular design ensures adaptability to your evolving audio needs, allowing you to create a personalized audio system. Whether you’re aiming for a full-scale home theater experience or a refined stereo setup, the DSP3-213 adapts to your aspirations.

Immerse yourself in the power of customizations with the HFD (Hypex Filter Design) software. The DSP3-213 supports a wide array of IIR and FIR filter options, enabling you to fine-tune the DSP behavior and filtering to meet the unique demands of your audio environment. From crystal-clear highs to powerful lows, every nuance of your audio is sculpted to perfection.

Envision a premium stereo or 2.1 system by configuring multiple DSP3-213 boards in a master-slave setup. This innovative configuration unlocks the full potential of your audio setup, delivering an immersive and captivating auditory experience that transcends traditional boundaries. Whether you’re a discerning audiophile or a professional sound engineer, the DSP3-213’s versatility elevates your audio ambitions.

Store and recall different presets effortlessly. The DSP3-213 allows you to save varied filter settings, inputs, and volume offsets, ensuring seamless transitions between different audio environments. This flexibility caters to the diverse preferences of audiophiles, putting the power of audio personalization in your hands. Effortlesly switch between movie nights and music sessions with presets that enhance every experience.

Experience intelligence in audio with features like Auto-signal-detect and adjustable standby settings. These intuitive functionalities ensure that your audio system seamlessly adapts to your needs, providing an uninterrupted and enjoyable listening experience. The DSP3-213 isn’t just a device; it’s a partner in your quest for audio perfection, intelligently adapting to your preferences.

The same powerful DSP3-213 platform is the heartbeat of our Fusion Amplifier Family. Immerse yourself in a world where innovation meets performance, and redefine your audio expectations with the Fusion Amplifier Family. Each Fusion amplifier embodies the same commitment to excellence, ensuring that your audio experience remains consistently exceptional.

Highlights

• Three channel active filtering
• One FIR (4500 taps) or three (1500 taps per channel) per preset
• Compatible with NCMP and NCAS series
• Three programmable presets

Features

• Configurable Soft clip limiter
• IIR & FIR capable
• Programmable with Hypex Filter Design (HFD)
• Automatic source selection
• Automatic signal detection
• Optional IR remote control

Possible applications

• High-end consumer audio
• Active loudspeakers
• Subwoofers
• PA systems
• Studio monitors

Channels:	1 in - 3 out
Input Level XLR:	18 (6,15) dBu (Vrms) - Default gain setting
Output Level XLR:	9 (2,18) dBu (Vrms) - Default gain setting
Signal / Noise Ratio:	-109 dB - Analog in
Distortion:	-100 dB - Analog in
Analog Latency:	350 µs
Digital latency:	1.8 ms - 96kHz input sample rate
DSP & ADC Sampling Rate:	93.75 kHz
Delay per channel:	0ms (Min) to 32ms (Max)
DSP:	ADAU1452
ADC:	AK5554
ADC Bit Depth:	24bit
DAC:	AK4454
Filter Options:	IIR / FIR - Hypex Filter Designer (HFD)
Compatible with:	Mains powered NCORE® Family, NCORE® Active speaker Family
Family:	DSP Family

Recommended additional parts

Hypex DSP3-322 Digital input board for DSP3-213

DIGin3-322

Unleash the full potential of the DSP3-series DSP solutions with the DIGin3-322, a digital input board designed to extend the DSP3-series input capability. Engineered to match the DSP3-series DSP solutions and will increase the usability of the DSP. The DIGin3-322 transforms the DSP3-series solutions by adding a digital powerhouse. With its advanced digital input capabilities, this board ensures that every digital signal is handled with precision, delivering uncompromised audio quality to your system. Adaptability is at the heart of the DIGin3-322. Designed to seamlessly integrate with a variety of audio sources, it serves as the perfect link between your digital devices and the immersive world of high-fidelity sound. Digital sources can be connected via the AES, SPDIF, or Optical inputs, providing a wide range of digital input options. Taking adaptability to the next level, the DIGin3-322 offers an internal digital input for a wireless connection like Bluetooth or a WiSA implementation. This opens up a realm of wireless possibilities, allowing you to tailor your audio setup to your preferences and stay ahead in the ever-evolving landscape of audio technology. If desired, the package of a DSP3-213 and DIGin3-322 also works in cooperation with the Fusion Remote Control or Fusion OLED Display for remote adjustments. Experience hassle-free integration combined with the DSP3-series DSP solutions. Designed for simplicity without sacrificing sophistication, this digital input board ensures an effortless installation process. Plug in, power the system up, and let the DIGin3-322 transform your audio world. Elevate your listening experience with the support for high-resolution audio formats. The DIGin3-322 preserves the intricacies of your music, ensuring that every note and detail is faithfully reproduced, providing a listening experience that captivates and immerses. Highlights • AES input and output • SPDIF input and output • Optical input • Low jitter Features • Maximum optical sample rate: 96kHz • Maximum SPDIF & AES sample rate: 192kHz Possible applications • High-end consumer audio • Active loudspeakers • Subwoofers • PA systems • Studio monitors

Hypex DSP3-110 SUBin High-level input for DSP3-213

SUBin3-110

The SUBin3-110 stands out as an innovative addition to your audio setup, specifically engineered for use with subwoofers! This sophisticated device serves as an add-on, specially designed to incorporate a high-level input and a user-friendly volume control knob seamlessly into the DSP3-213 DSP-solution. With the SUBin3-110, you can elevate your audio experience by gaining more control over your subwoofer. The high-level input ensures versatile connectivity, allowing you to integrate this add-on effortlessly into your existing audio application. This feature is designed to enhance compatibility and convenience. The inclusion of a dedicated volume control knob literally puts the power of precision in your hands. Adjust the audio output according to your preferences, fine-tuning it to perfection. This intuitive control enhances your ability to tailor the sound to suit different occasions, making your audio setup more versatile than ever. If desired, the package of a DSP3-213 and SUBin3-110 also works with the Fusion Remote Control or Fusion OLED Display for remote adjustments. Upgrade your DSP3-213 with the SUBin3-110, and enjoy the benefits of expanded connectivity and refined control. Unleash the full potential of your subwoofer with this seamless integration, offering both functionality and ease of use. Highlights • High-level inputs Features • Volume control Possible applications • High-end consumer audio • Active loudspeakers • Subwoofers • PA systems • Studio monitors
