Product information "UcD400HG"
*** This product is discontinued ***

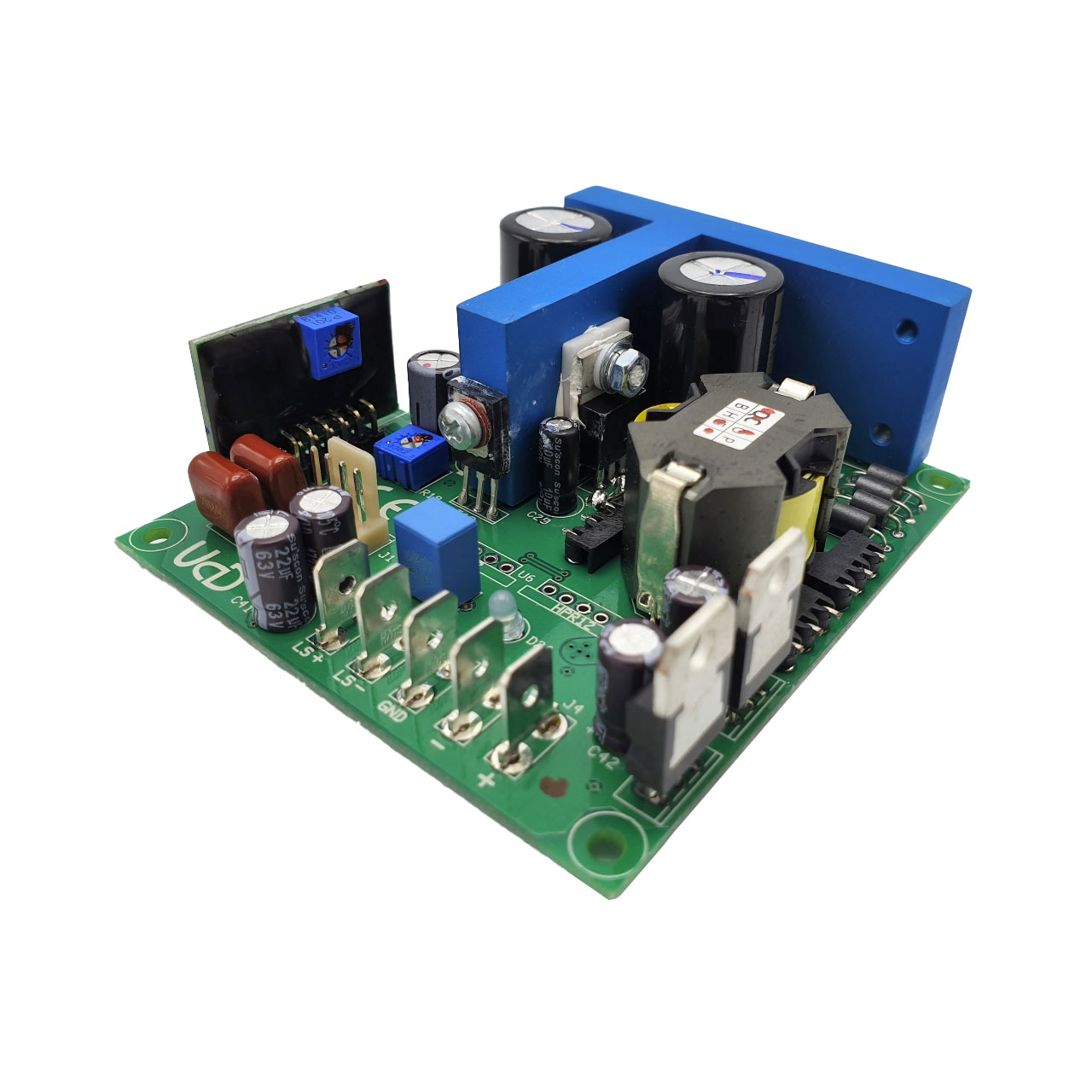

The UcD400HG amplifier module is a self-contained high-performance class D amplifier intended for a wide range of audio applications, ranging from Public Address systems to ultrahigh-fidelity replay systems for studio and home use. Chief distinguishing features are flat frequency response irrespective of load impedance, nearly frequency-independent distortion behaviour and very low radiated and conducted EMI. Control is based on a phase-shift controlled self-oscillating loop taking feedback only at the speaker output.
APPLICATIONS
- Audiophile power amplifiers for professional and consumer use
FEATURES
Pop-free start and stop control
- Differential audio input
- Overcurrent and over voltage protection
- No compromise components
- LM4562 buffer
- OpAmp
- HxR12 ready
- Improved on-board buffer supply
CONTENTS OF PACKAGING
- UcD400HG amplifier module
- Mounting set
- UcD Manual
RECOMMENDED ADDITIONAL PARTS
- Power supply SMPS400A400
- UcD signal cable
| Output Power (4Ω): | 400W |
|---|---|
| Output Power (8Ω): | 240W |
| Channels: | 1 |
| Power Supply Voltage: | 64V |
| HxR Ready: | Yes |
| Compatible SMPS: | SMPS400A400 or *SMPS1200A400 (no DC error protection) |
| Technology: | UcD™ |
