The Hypex solution

The ultimate solution for your applications.

Our products are applicable in a wide variety of OEM solutions. Take a look at the various examples per application category to find the best solution for any of your challenges.

Active loudspeaker Subwoofer Amplifier Line Array Musical Instruments

2-way active loudspeaker 3-way active loudspeaker

Single subwoofer Dual subwoofer

Pre amplifier Mono Power Amplifier Stereo / Dual Power Amplifier Multi Channel Amplifier

Line Array & Beam Steering

Musical Instruments

Line array and beam steering

Beam steering is used to direct the audio from the loudspeakers to a specific location in the listening area. This is done by changing the magnitude and phase of two or more loudspeakers installed in a column where the combined sound is added and cancelled at the required position. Commercially, this type of loudspeaker arrangement is known as a line array.

If you can't find what you are looking for don't hesitate to contact us at sales@hypex.nl

Examples of available line array and beam steering solutions:

Output Power RMS	Channels	Available solutions	Switch Mode Power Supply	Extra
50W	2	1x NC52MP OEM	On board
	4	2x NC52MP OEM	On board
	6	3x NC52MP OEM	On board
	8	4x NC52MP OEM	On board

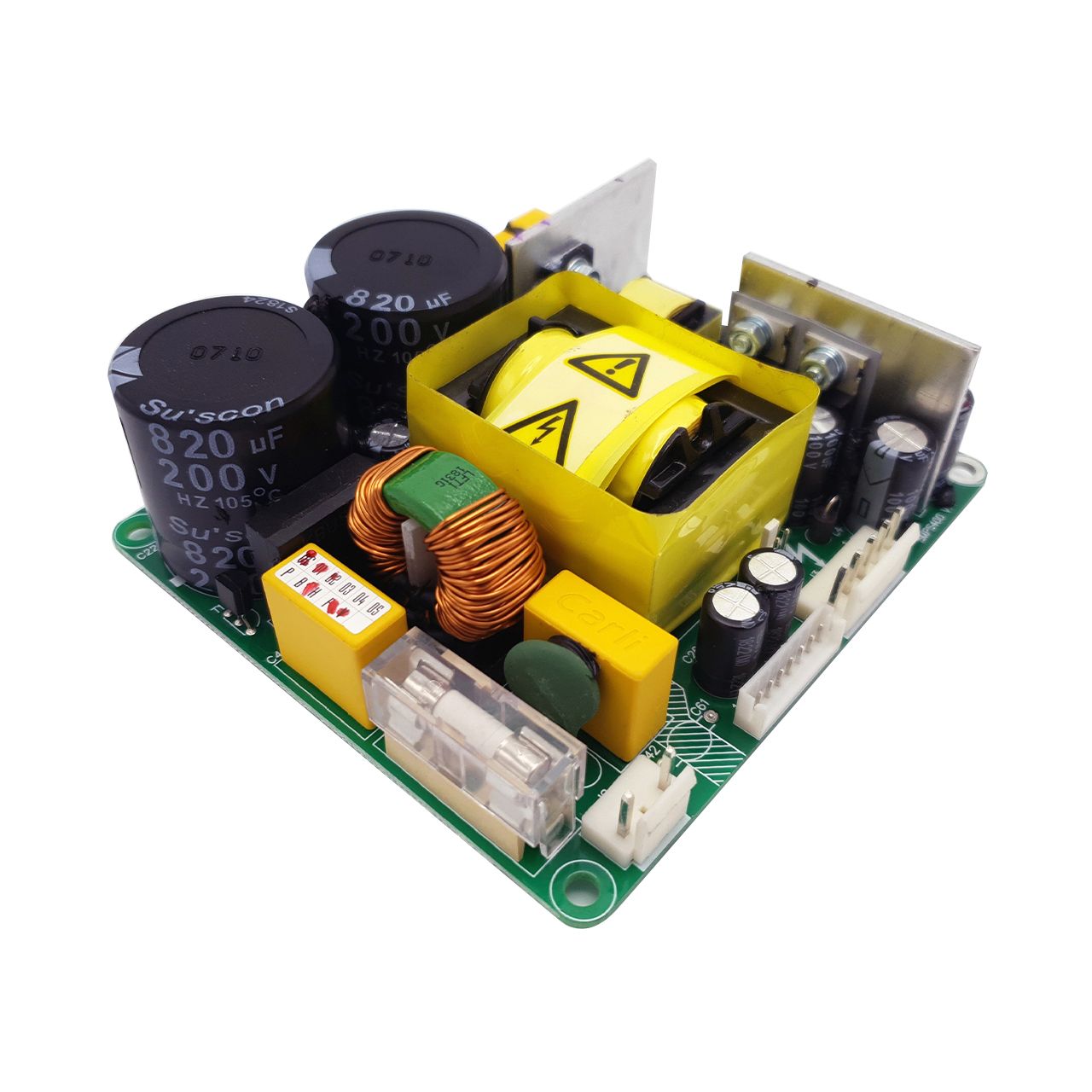

100W	2	1x UcD102 OEM	+ 1x SMPS400A100
	4	2x UcD102 OEM	+ 1x SMPS400A100
	6	3x UcD102 OEM	+ 1x SMPS1200A100
	8	4x UcD102 OEM	+ 1x SMPS1200A100
	12	6x UcD102 OEM	+ 1x SMPS1200A100
125W	2	1x NC122MP OEM	On board
	4	2x NC122MP OEM	On board
	6	3x NC122MP OEM	On board
	8	4x NC122MP OEM	On board

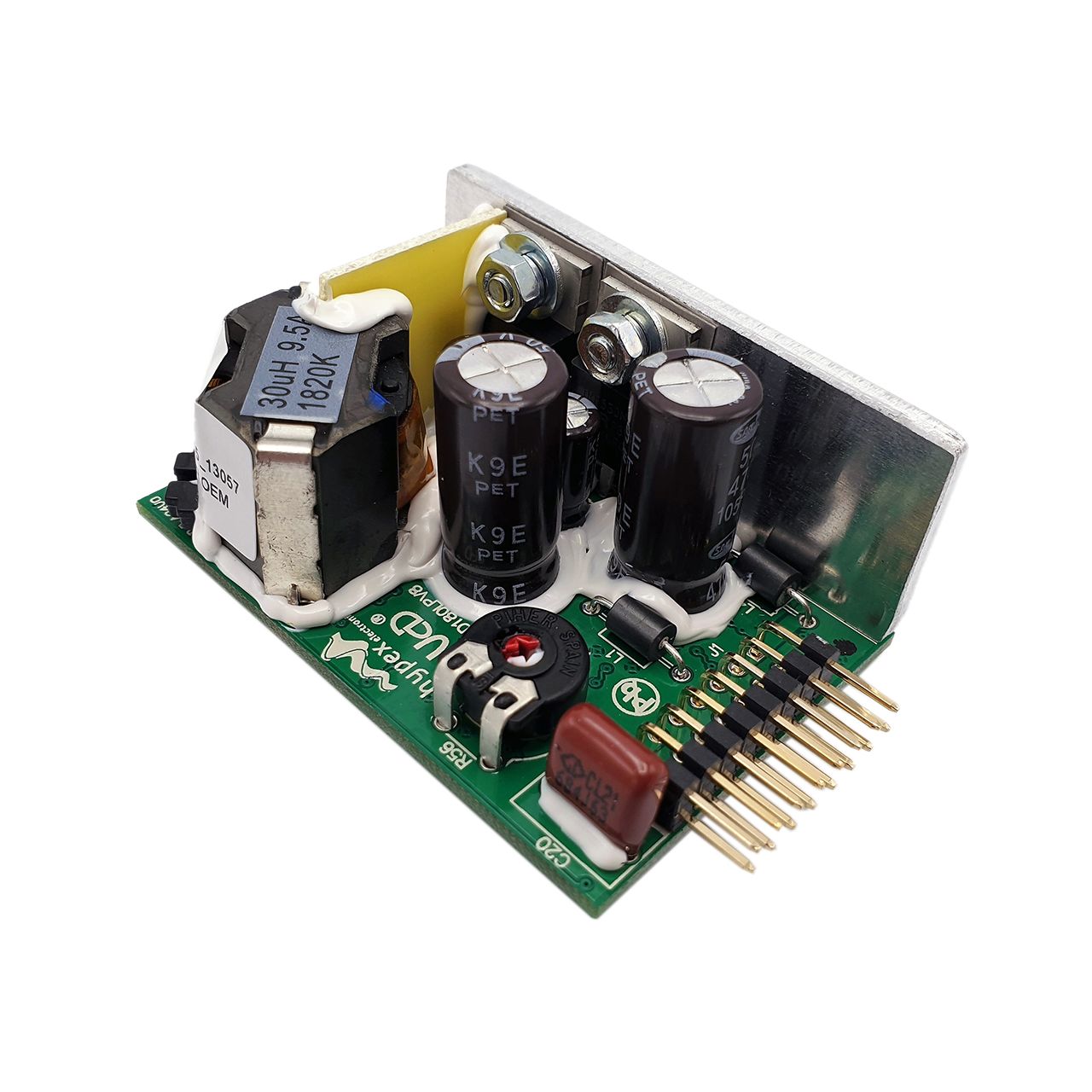

180W	2	2x UcD180LP OEM	+ 1x SMPS400A180
	4	4x UcD180LP OEM	+ 2x SMPS400A180
	6	6x UcD180LP OEM	+ 1x SMPS1200A180
	8	8x UcD180LP OEM	+ 2x SMPS1200A180
	12	12x UcD180LP OEM	+ 2x SMPS1200A180

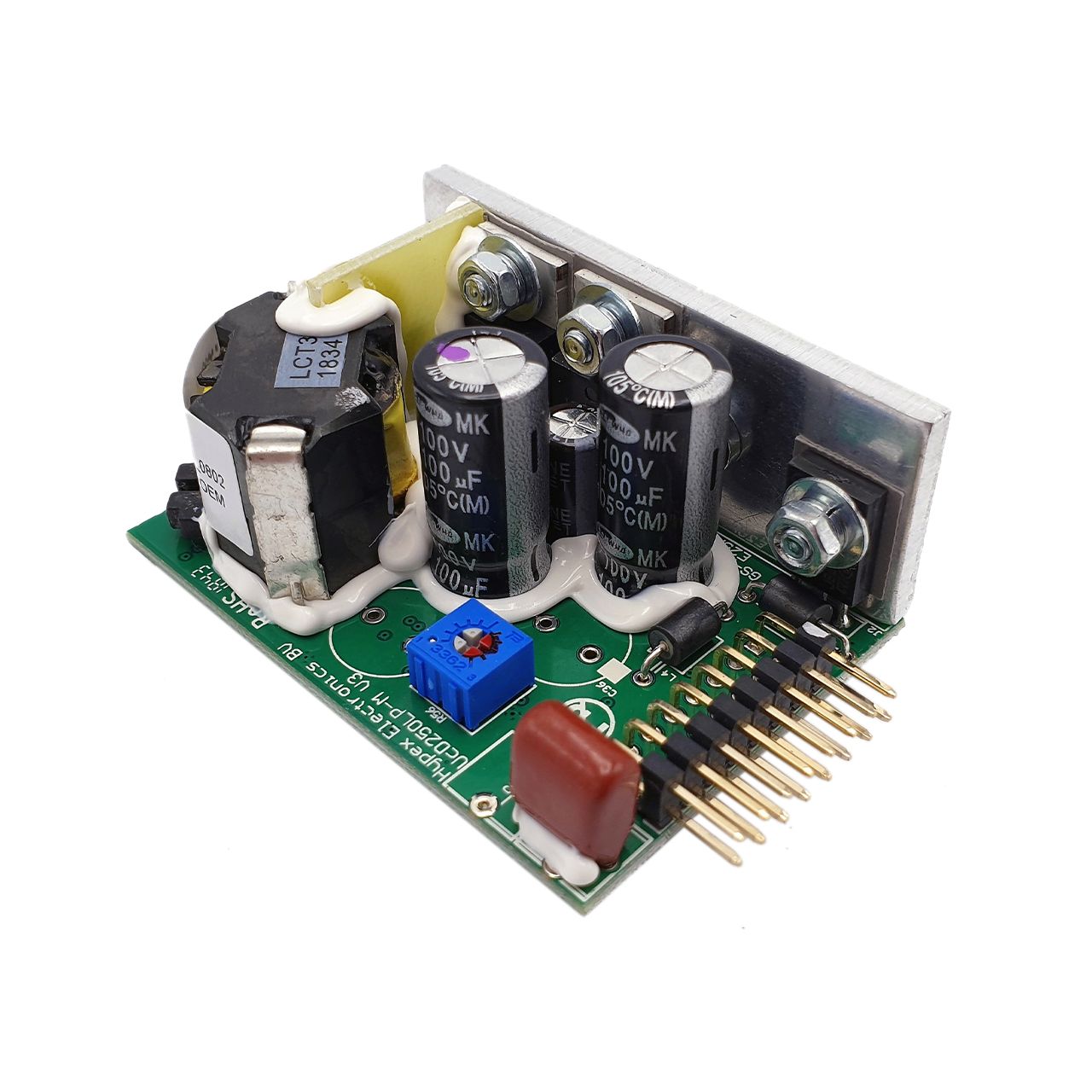

250W	2	2x UcD250LP OEM	+ 1x SMPS400A400	+ additional Vdr supply
	4	4x UcD250LP OEM	+ 1x SMPS1200A400
	6	6x UcD250LP OEM	+ 1x SMPS3kA400
	8	8x UcD250LP OEM	+ 1x SMPS3kA400
	12	12x UcD250LP OEM	+ 1x SMPS3kA400	+ additional Vdr supply

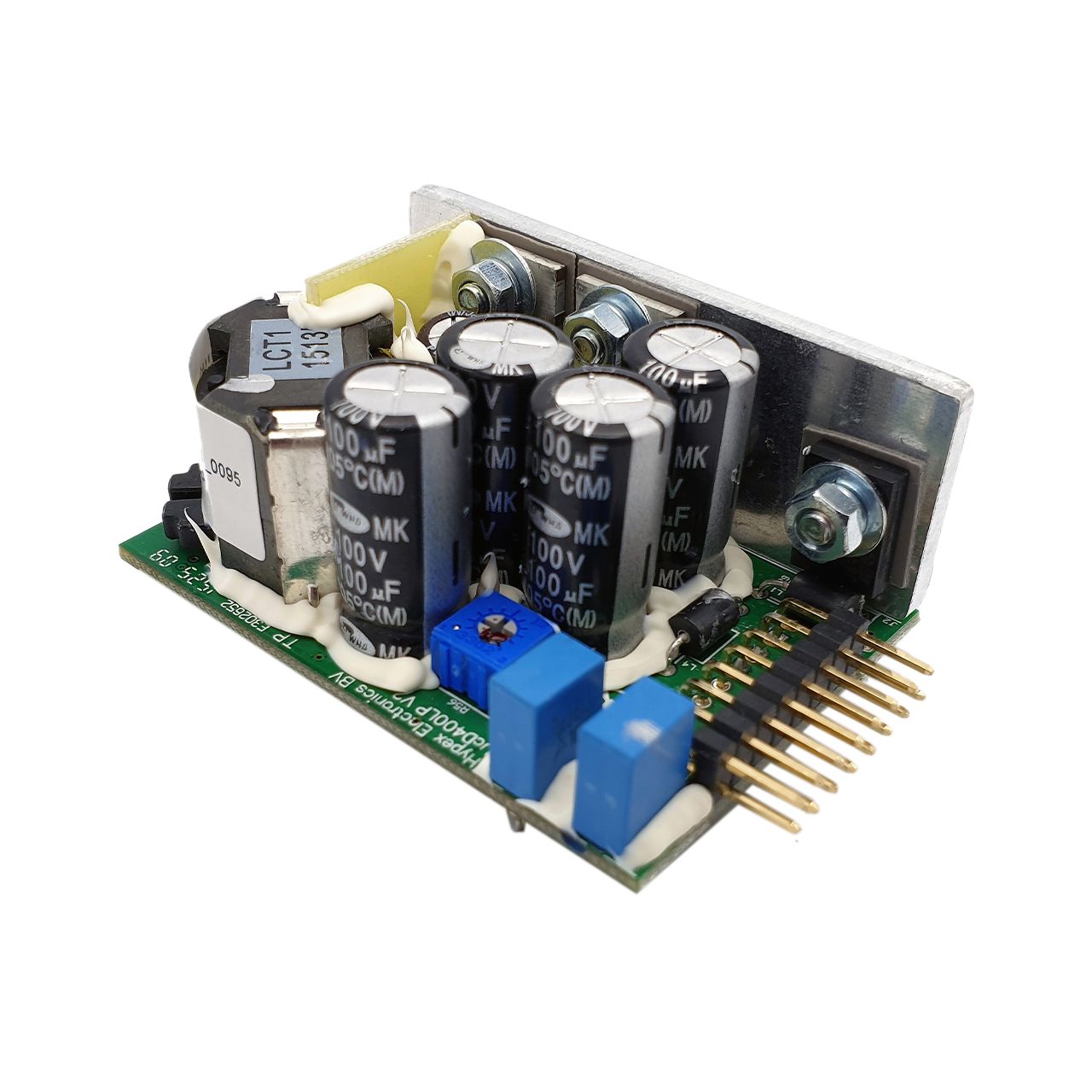

400W	2	2x UcD400LP OEM	+ 1x SMPS1200A400
	4	4x UcD400LP OEM	+ 1x SMPS3kA400
	6	6x UcD400LP OEM	+ 1x SMPS3kA400
	8	8x UcD400LP OEM	+ 1x SMPS3kA400	+ additional Vdr supply
	12	12x UcD400LP OEM	+ 2x SMPS3kA400	+ additional Vdr supply

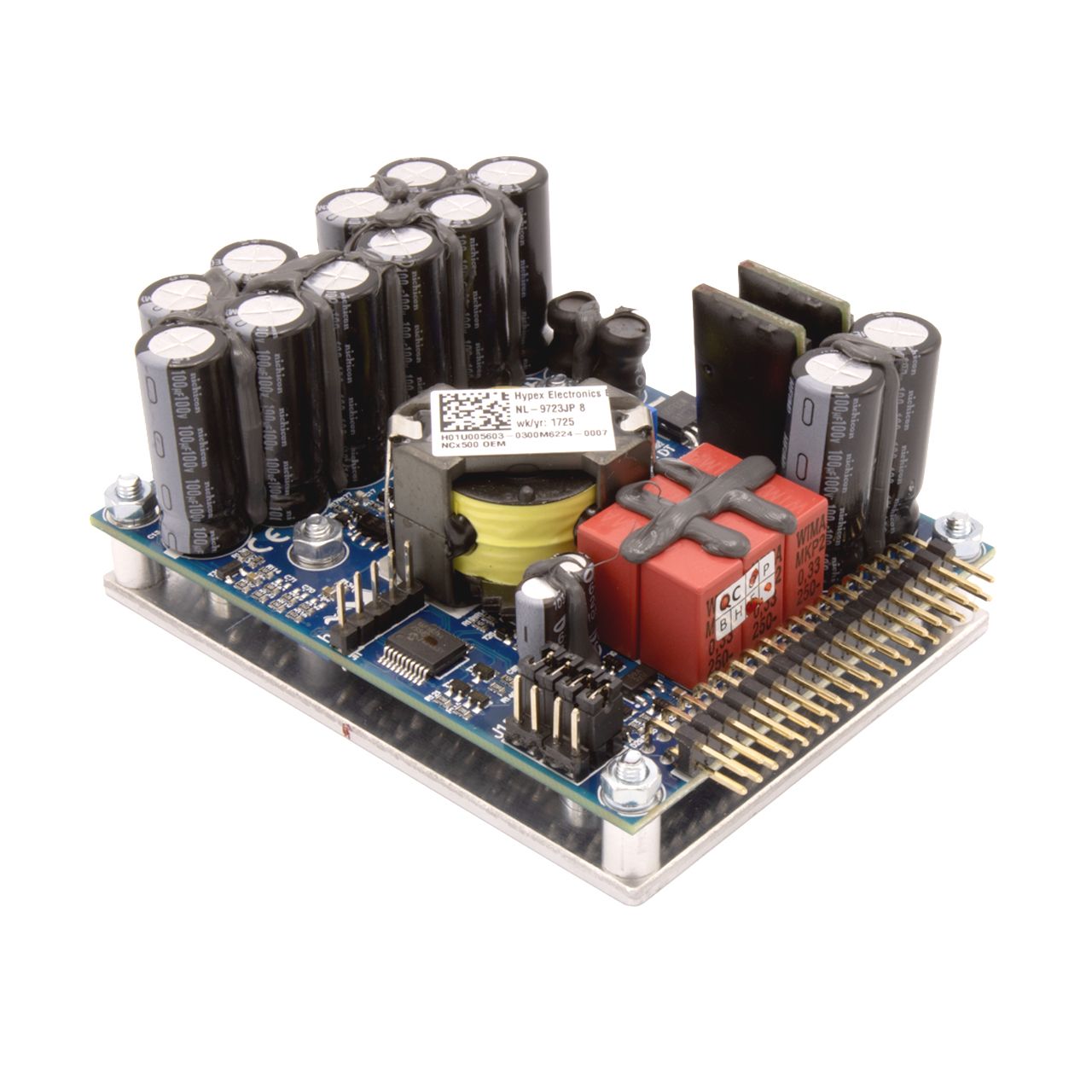

700W	2	2x NC500 OEM	+ 1x SMPS1200A700
	4	4x NC500 OEM	+ 1x SMPS3kA700
	6	6x NC500 OEM	+ 1x SMPS3kA700	+ additional Vdr supply
	8	8x NC500 OEM	+ 1x SMPS3kA700	+ additional Vdr supply
700W	2	2x NC500 OEM (BTL)	+ 1x SMPS1200A700
	4	4x NC500 OEM (BTL)	+ 1x SMPS3kA700
	12	12x NC500 OEM	+ 2x SMPS3kA700	+ additional Vdr supply
1500W	2	2x NC2k OEM	+ 1x SMPS3kA700
	4	4x NC2k OEM	+ 2x SMPS3kA700
2500W	2	2x NC2k OEM	+ 2x SMPS3kA700
